A Complete Guide to Corrugated Boxes Manufacturing

George Yang has a background in mechanical engineering from Tsinghua University and is a pioneer in the box-making machinery industry. Drawing on his expertise, he founded Autoboxup, dedicated to advancing and innovating box-making machinery technology.

George Yang’s deep expertise and commitment to innovation has propelled Autoboxup to the forefront of the boxmaking machinery industry. His groundbreaking efforts not only changed the industry landscape, but also served as an inspiration to fellow entrepreneurs and engineers.

George Yang’s contributions to the field of box making machinery have been recognized by industry leaders and publications, making him a respected authority on the industry. His relentless pursuit of excellence continues to drive progress and shape the future of boxmaking machinery technology.

View author

Ever wondered what goes into the humble corrugated box that protects and transports everything from electronics to food items across the globe? Many may see it as just another piece of packaging, but for businesses, a corrugated box’s quality can make a difference in ensuring their products reach customers in perfect condition.

This comprehensive guide promises to unravel the art of manufacturing corrugated boxes. It aims to shed light on the various types of boxes, the raw materials used, the manufacturing process, and the stringent quality control tests they must pass.

Buckle up and read on for an enlightening journey into the world of corrugated boxes.

1. Types of Corrugated Boxes

When it comes to the realm of corrugated boxes, there exists a myriad of types, each possessing its unique properties. Let’s dive deeper into the diverse variety of these boxes.

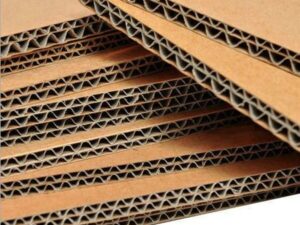

Single-Wall Corrugated Boxes

Single-wall corrugated boxes, or double-faced corrugated boxes, are the most common types utilized across numerous industries. These boxes consist of a fluted, or corrugated, sheet sandwiched between two linerboards. Single-wall boxes are admired for their combination of lightweight and sturdy characteristics, making them an ideal choice for shipping and storing a vast array of products.

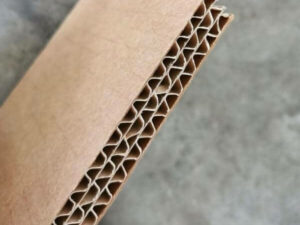

Double-Wall Corrugated Boxes

A notch above in strength and durability are double-wall corrugated boxes. These boxes feature two layers of corrugated medium, or fluting, nestled between three linerboards. The added layer of fluting provides extra strength, making these boxes suitable for heavier objects or fragile items requiring additional protection. These are common in industries like electronics, where product protection during transportation is paramount.

Triple-Wall Corrugated Boxes

At Autoboxup, our triple-wall corrugated boxes take sturdiness to an even higher level. According to James Town Container, the three layers of corrugated include an inside liner, an outside liner, and a medium that goes between the two, which is fluted. These boxes are often utilized for shipping heavyweight items or for exporting goods, as they offer the strength of a wooden crate but with a lightweight advantage.

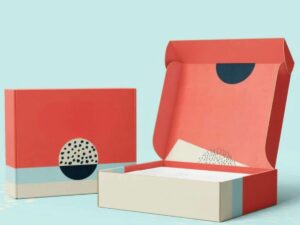

Customizable Corrugated Boxes

Customizable corrugated boxes signify the flexibility and versatility of the corrugated box industry. These boxes can be tailored in terms of their size, shape, material thickness, and design, meeting unique product specifications or aligning with branding requirements. Be it the need for a custom sized box or the desire to have the company logo imprinted, customizable corrugated boxes are an answer to varied packaging needs.



2. Raw Materials Used in Corrugated Box Manufacturing

Understanding the construction of corrugated boxes necessitates a close look at the raw materials that give these boxes their characteristic strength and flexibility. Here are the core components that make up these highly versatile boxes.

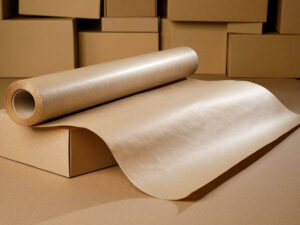

Kraft Paper

The cornerstone of corrugated box manufacturing is Kraft paper, a tough, resilient type of paper prized for its durability. Kraft paper is produced using the Kraft process, which treats wood chips with a hot mixture of water, sodium hydroxide, and sodium sulfide. Kraft paper forms the linerboard and the fluting in corrugated boxes, thus playing an integral role in the structural rigidity of the box.

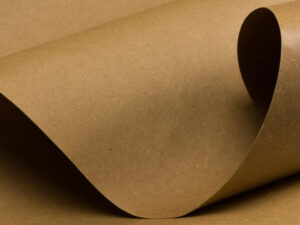

Linerboard

Linerboard, essentially a type of Kraft paper, forms the flat outer and inner surfaces of the corrugated box. It can be made from virgin cellulose fiber (sourced from softwood trees like pine and spruce) or recycled fiber, depending on the application requirements. The linerboard’s primary function is to increase the box’s tensile strength and resistance to impact, essentially acting as a protective shield for the corrugated medium within.

Adhesives

Adhesives act as the bonding agent in corrugated boxes. The most commonly employed in corrugated box production is a starch-based glue. It’s prepared by heating a mixture of water, starch, caustic soda, and borax, resulting in a cost-effective and eco-friendly adhesive. The glue is applied to the tips of the flutes on the corrugated medium, which are then adhered to the linerboards, creating a strong and stable structure.

Ink and Coatings

Different types of ink, such as water-based, UV-cured, or solvent-based, can be used depending on the desired effect and application. Coatings, on the other hand, can enhance the box’s resistance to external factors. For instance, a water-repellent coating may be applied to protect the box from moisture, or a UV-resistant coating could be used to shield the box from sunlight.



3. The Manufacturing Process

Unveiling the process behind the manufacturing of corrugated boxes helps one appreciate the delicate blend of technology and craftsmanship involved. Let us navigate through the journey of transforming raw materials into a corrugated box.

Step#1 Paper Preparation

Whether using virgin Kraft paper or recycled materials, it’s essential to ensure that the paper is clean, free from impurities, and of consistent quality. The paper is often delivered in large rolls and is unwound, cut, and conditioned to meet the requirements. Conditioning may include controlling the paper’s moisture content and temperature, which are vital for ensuring proper adhesion during the corrugation process.

Step#2 Corrugation Process

At Autoboxup the Kraft paper is fed into a corrugator machine, which heats and moistens the paper, making it pliable. The softened paper is then passed through a set of corrugating rolls, which shape it into a wavy pattern, known as flutes. These flutes provide strength and flexibility to the box, cushioning the contents against impacts and providing insulation against temperature changes.

Step#3 Gluing and Joining

Once the flutes have been formed, the next step is gluing and joining. Here, the fluted paper is adhered to the linerboards using a starch-based adhesive. The corrugated medium is glued on one side and then joined with a linerboard, creating a single-face board. For double-wall and triple-wall boxes, this process is repeated, adding more layers of corrugated medium and linerboard.

Step#4 Cutting and Scoring

After the glue has dried and the boards have been formed, the resulting corrugated sheets are cut and scored according to the box design. The sheets are cut to the desired size, and scores (or creases) are made at specific locations to allow the box to be folded into shape. This step requires precision and accuracy to ensure that the boxes are of uniform size and shape, fitting perfectly with the product they are meant to hold.

Step#5 Printing and Design

Printing and design add the aesthetic touches to the corrugated boxes. Depending on the box’s purpose and the customer’s requirements, the box may be printed with logos, product information, handling instructions, or any other form of branding. Various printing methods can be used, such as flexography or lithography, each offering different advantages in terms of cost, quality, and versatility.























Step#6 Folding and Forming

The final step in the manufacturing process is folding and forming the boxes. The cut and scored sheets are folded along the creases to create the box shape, and the flaps are often glued or stapled together to secure the box. This process can be done manually or automatically, depending on the volume of production. The boxes are then bundled together, ready for shipping to the customer.



4. Quality Control and Testing

Ensuring the production of top-quality corrugated boxes is of utmost importance in this industry. Let us delve into quality control measures and testing protocols that help ascertain the performance and reliability of these boxes.

Parameter/Feature Quality Control Check Testing Method
Bursting Strength Ensure strength meets industry standards. Bursting strength tester.
ECT (Edge Crush Test) Verify the box can handle load without collapsing. Edge crush tester.
Flat Crush Test Confirm the flatness after manufacture. Flat crush tester.
Moisture Content Ensure appropriate moisture levels. Moisture meter or oven drying method.
Box Dimensions Confirm size specifications are met. Manual measurement with tape or caliper.
Box Weight Confirm weight specifications are met. Weighing scale.
Adhesion of Flutes Check bonding between flutes and liners. Peel or bond test.
Printing Quality Inspect for clarity, sharpness, and color match. Visual inspection against a standard.
Score Quality Ensure clean and precise folds. Visual inspection.
Assembly & Glue Strength Check for appropriate adhesive application and bond strength. Pull test or peel test.
Box Compression Test Check how much load the box can take before failing. Box compression tester.
Cobb Test Measure water absorption rate of the board. Cobb testing apparatus.
Grammage Ensure the paper weight is as per standard. GSM (Grams per Square Meter) round cutter and balance.



Bursting Strength Test

The Bursting Strength Test measures the box’s ability to withstand pressure without rupturing. A hydraulic pressure is applied through a rubber diaphragm on the box until it bursts, and the pressure at the point of rupture is recorded as the bursting strength. This metric gives an indication of the box’s robustness and its ability to protect its contents under pressure.

Edge Crush Test (ECT)

The Edge Crush Test (ECT) is another vital test, particularly in the context of box stacking. According to IQS Directory, the ECT test measures the vertical compression strength of a box and serves as an indicator as to how well a box will react to being stacked for shipping or placed on a pallet. Boxes with a higher ECT value are likely to help reduce the risk of damage to the products within during storage and transportation.

Box Compression Test (BCT)

The Box Compression Test complements the ECT by evaluating a box’s compression strength. A compressive force is applied to the box until it fails, and this force is registered as the box’s compression strength. The BCT value is especially important in scenarios where boxes are stacked high or stored for extended periods, providing assurance that the boxes will maintain their structure and keep the products inside safe.



5. Customization and Specialty Corrugated Boxes

The ability to tailor corrugated boxes to specific needs is a testament to their versatility. Let’s learn how customization options and specialty corrugated boxes can enhance packaging performance and branding impact.

Tailored Sizes and Shapes

One of the most fundamental aspects of customization in corrugated boxes is tailoring their sizes and shapes. Whether it’s a compact box for a small electronic gadget or a large one for a piece of furniture, corrugated boxes can be tailored to fit products of all sizes and shapes. This not only ensures optimal protection for the product but also reduces waste and shipping costs by avoiding unnecessarily large packaging.

Branding and Custom Printing

Corrugated boxes provide an excellent canvas for branding and custom printing. For example, companies often choose to have their logo, tagline, or distinctive graphics printed on the box to boost brand recognition and make their packages stand out in a crowd. Beyond logos and branding, boxes can also be printed with product information, user instructions, or even fun facts and stories.

Inserts and Partitions

For products that are fragile, valuable, or composed of multiple parts, corrugated boxes can be equipped with custom inserts and partitions. These internal structures hold the product securely in place, preventing movement and reducing the risk of damage during transit. They are designed to fit the product perfectly, offering enhanced protection and an unboxing experience that can be functional and aesthetically pleasing.



6. Advanced Manufacturing Techniques and Automation

The corrugated box industry has seen significant advancements in manufacturing techniques and automation. Here are some of these advancements.

Use of Computer-Aided Design (CAD)

Computer-Aided Design (CAD) has revolutionized the design process in the corrugated box industry. CAD allows manufacturers to create precise, three-dimensional designs of boxes, including their size, shape, and any interior components like inserts or partitions. The design can be adjusted and perfected on the computer before being sent to the production line, reducing waste and ensuring a perfect fit for the product.

Automated Box Making Machines

Automated box making machines have dramatically increased the speed, efficiency, and consistency of corrugated box manufacturing. These machines can handle a range of tasks, from corrugation and gluing to cutting, scoring, and forming, often at a rate of hundreds or even thousands of boxes per hour. Automation not only accelerates production but also reduces manual labor and the associated risk of errors.

Robotics in the Packaging Industry

The incorporation of robotics in the packaging industry has added another level of automation and precision to the manufacturing process. Robots can handle tasks such as palletizing boxes, applying adhesives, or even assembling the boxes themselves. They can work tirelessly, around the clock, often with higher precision and consistency than manual labor.



7. Regulations and Compliance

The corrugated box industry is subject to a range of regulations and compliance requirements that ensure quality, safety, and sustainability. Let’s delve into the key standards and regulations below.

Packaging Industry Standards and Certifications

Compliance with industry standards and certifications is may include quality management standards like ISO 9001, environmental standards like ISO 14001, or specific packaging standards such as the ISTA (International Safe Transit Association) protocols. Compliance with these standards reassures customers that the boxes have been manufactured to high-quality standards and have undergone rigorous testing.

Health and Safety Compliance

Corrugated box manufacturers must also comply with health and safety regulations. These cover a wide range of aspects, from ensuring the safety of the manufacturing equipment and procedures to the use of safe, non-toxic materials in boxes. Regulations may also include requirements for safe handling and disposal of waste materials.

Trade and Export Regulations

Adherence to trade and export regulations is essential. These may include customs regulations, import duties, and documentation requirements in the destination countries. Compliance with these regulations ensures a smooth export process and avoids potential delays or penalties. Some regulations may also relate to the use of sustainable materials, reflecting the global move towards greener, more sustainable packaging solutions.

Conclusion

The journey through the intricate process of corrugated box manufacturing sheds light on the skill and precision required to produce these everyday essentials. The combination of art, science, and technology involved in this process is a testament to the vital role these boxes play in various industries.

For businesses seeking advanced packaging solutions, a partnership with a reliable box manufacturer like Autoboxup can make all the difference. Our team offers state-of-the-art box making machines that deliver quality, consistency, and efficiency in every box. Contact us today for more information about how we can enhance packaging solutions.
